8-Cores Linear Trunking Rail for Led Linear Light
Linear Trunking Rail
CxT-xxX,-08WH
FOB
1 piece
250000piece / Month
Shenzhen
5Day
Quantity:
Product Details
Coreshine Linear Trunking Rail
- 3-phase pre-selection via moving luminaire male connector pin to right or left to installation in rail

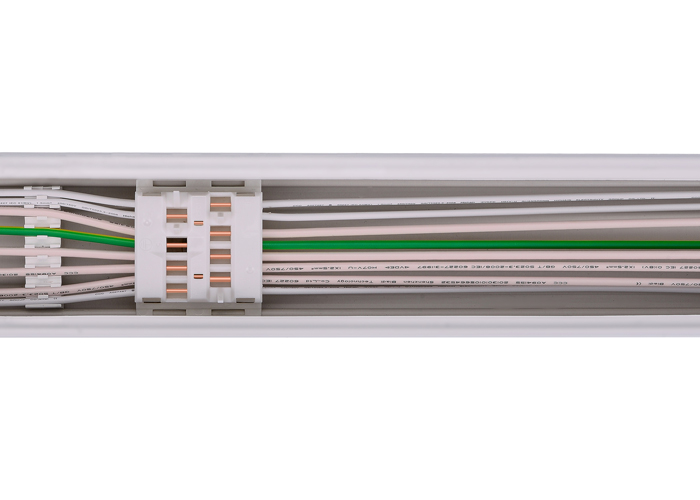

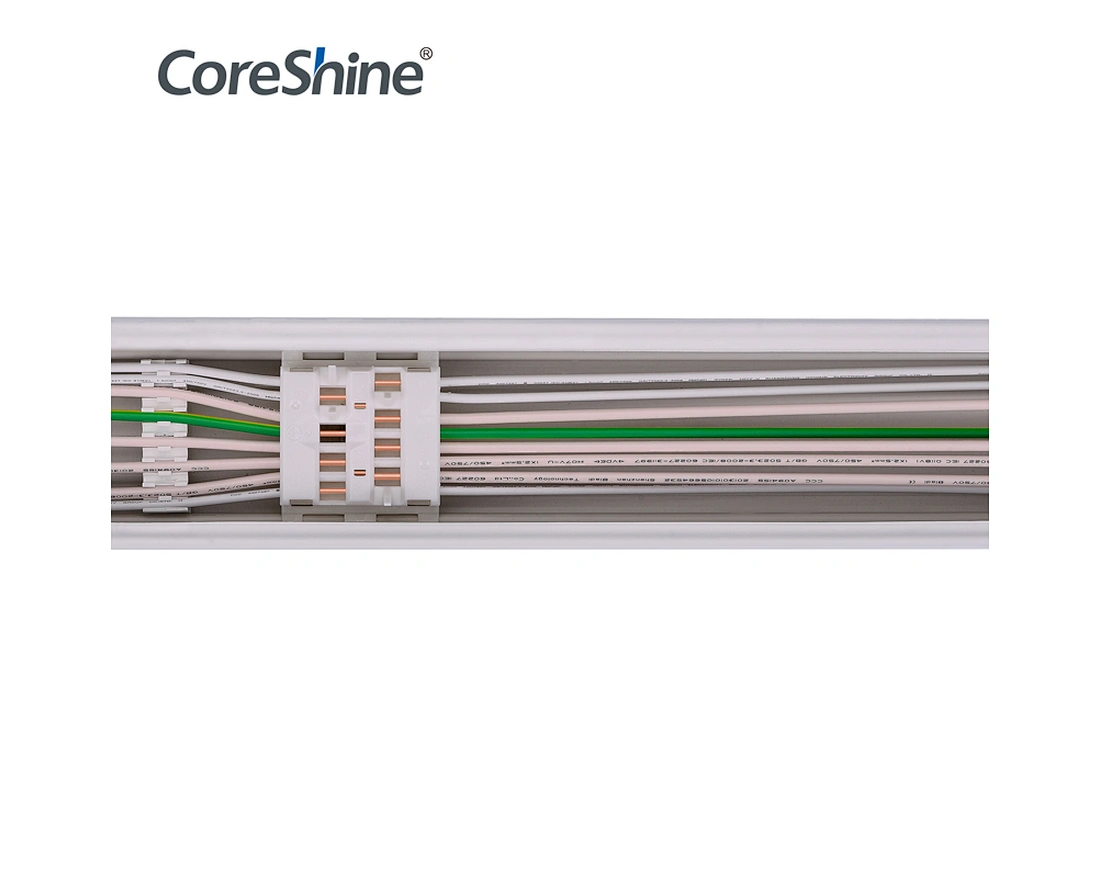

- Trunking rail as standard with 12 core through-wiring with 2.5mm2 cable for power supply and 1.5mm2 cable for dimming control
- The maximum current is 16A, allowing 70pcs of 1500mm 50w in one serial row 220VAC power supply
- Separate power suppliers, dimming or emergency supply can be integrated
- Electrical feed possible in sideward or end area of a trunking rail arrangement via special trunking rail element
- Wide distances between suspension points to 3m with self-supporting connector elements

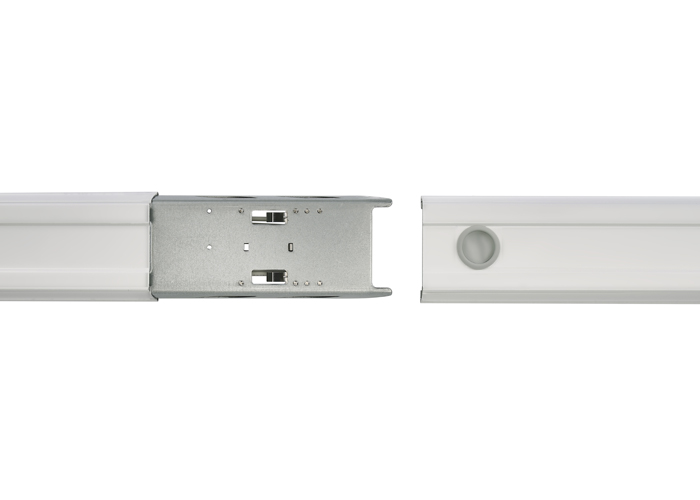

- Simple mounting of trunking rail elements with pre-assembled connectors with the integral plug-in system (electrical and mechanical connector )
- Flexible electrical feed-in and feed-out points
| Europe Standards | USA Standards | |
| Length | 600mm, 1500mm, 3000mm | 600mm, 1200mm, 2400mm |
| Wires |
| |

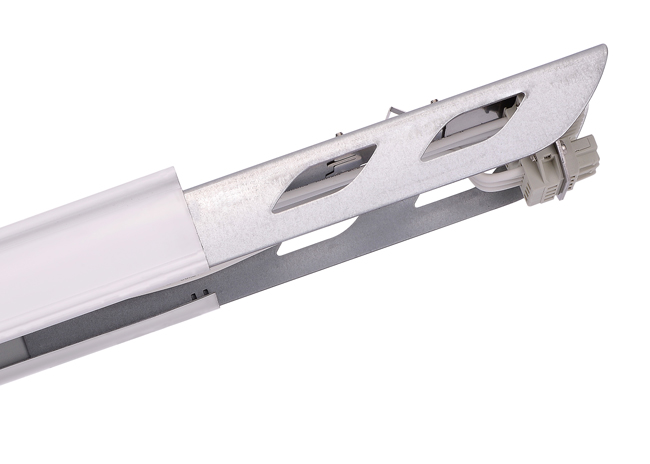

Product Pictures
| Length | Description | Code ID. | Standard |
| 600mm | 5 Wire | CFT-06X1-05WH | North America / Europe Standard |
| 8 Wire | CFT-06X1-08WH | ||
| 12 Wire | CFT-06X1-12WH | ||
| 1200mm | 5 Wire | CFT-12X1-05WH | North America Standard |
| 8 Wire | CFT-12X1-08WH | ||
| 12 Wire | CFT-12X1-12WH | ||
| 1500mm | 5 Wire | CFT-15X1-05WH | Europe Standard |
| 8 Wire | CFT-15X1-08WH | ||
| 12 Wire | CFT-15X1-12WH | ||
| 2400mm | 5 Wire | CFT-24X1-05WH | North America Standard |
| 8 Wire | CFT-24X1-08WH | ||
| 12 Wire | CFT-24X1-12WH | ||
| 3000mm | 5 Wire | CFT-30X1-05WH | Europe Standard |
| 8 Wire | CFT-30X1-08WH | ||
| 12 Wire | CFT-30X1-12WH |
