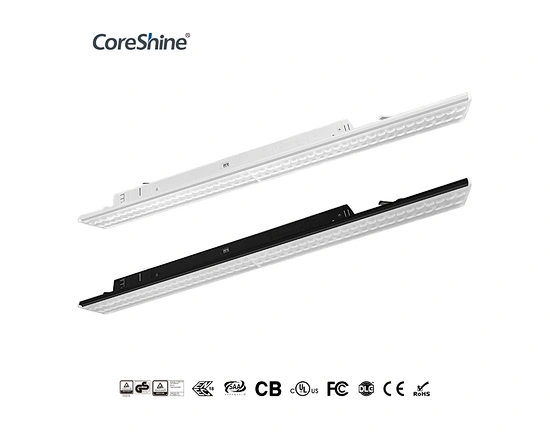

Led Linear Track Panel Light Module for 3/4 Cores Track Rail
T-Line Series
CTL-xxxx-X1X2-X3WH
FOB
1 piece
250000piece / Month
Shenzhen
5Day
Quantity:
Product Details

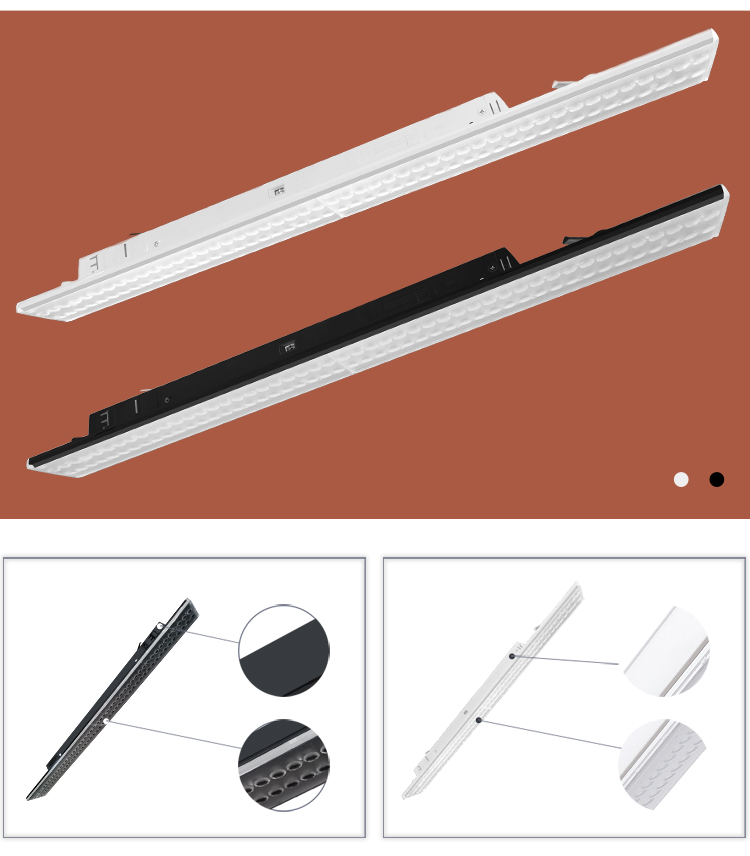

CoreshineT-LINEtrack led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.
- Cost-effective light-line solution for industrial, commercial, and other applications
- Good quality of light with high lumen output to meet different requirements
- Easy to install, reducing time, labor, packaging waste, and complexity
- Flexible solution Indirect Linear Lighting System is a new innovative solution for creating beautiful and efficient lighting
| Style | T-Line | Material | Aluminum Alloy + PMMA lens/PC cover |
| Light Source | smd2835 | Luminaire Length | 600mm, 1200mm, 1500mm, 2400mm |
| CRI (Ra>) | 80 | Track Rail Length | 600mm, 1000mm, 1500mm, 2000mm, 3000mm, 4000mm |

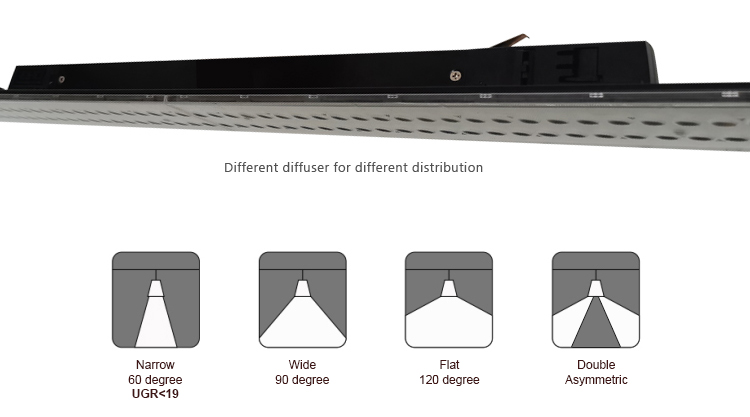

| UGR | <19 | Beam Angle | 60°;90°;120°; Double Asymmetric |
| PF | >0.95 | CCT | 3000K/4000K/5000K/6000K |
| THD | <15% | Input Voltage(V) | AC220-240VAC/100-277VAC |

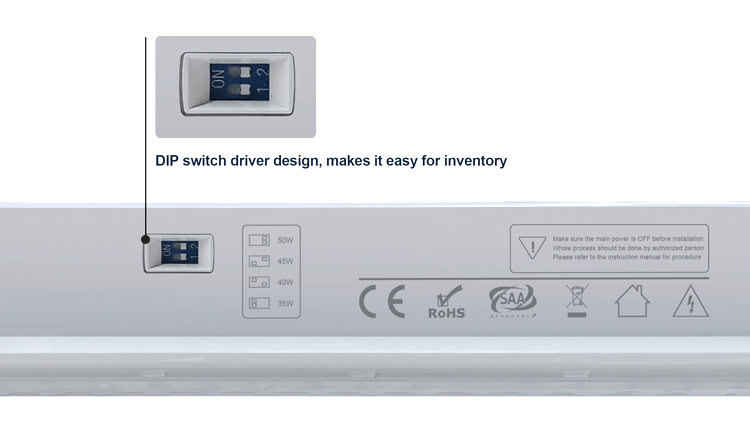

| Lumen | 2240lm-16000lm | Dimming | DIPswitch |

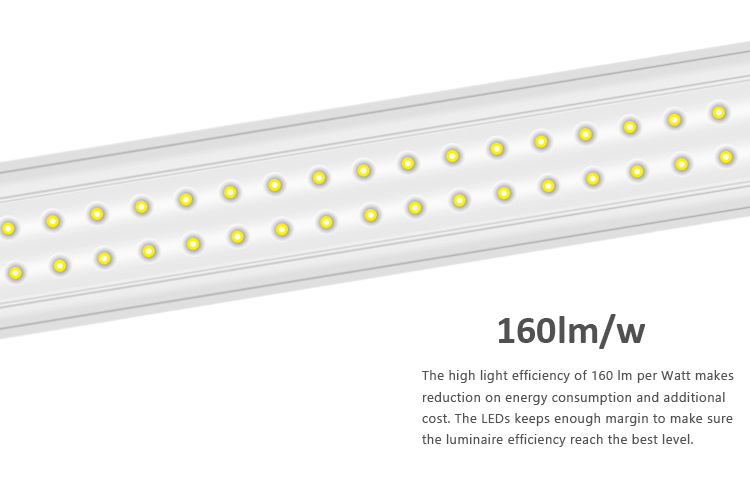

| Efficiency | 160lm/w | Power | 14W,18W,20W,35W,40W,50W... |
| Led Chip | Everlight/Samsung | Driver | Coreshine |
| Color | White, Black | Light Color | Warm White, White, Cold White |
| IP Rating | IP20 | Shipping | DHL/UPS/FEDEX/TNT and other |
| Warranty | 5 years | Lifespan (hours) | 50000 |
| Temperature | -20 - 65 ℃ | Certifications | CE/CB/SAA/ETL |
| Switch Type | Motion Sensor Switch | Function | Track Spot Light |

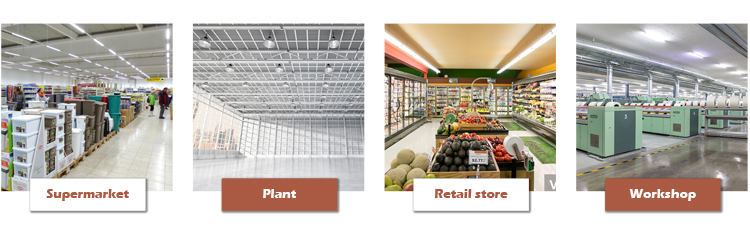

| Applications | Supermarket, Warehouse, Workshop, Office, Car Parking Industrial, etc. | ||
Products Description

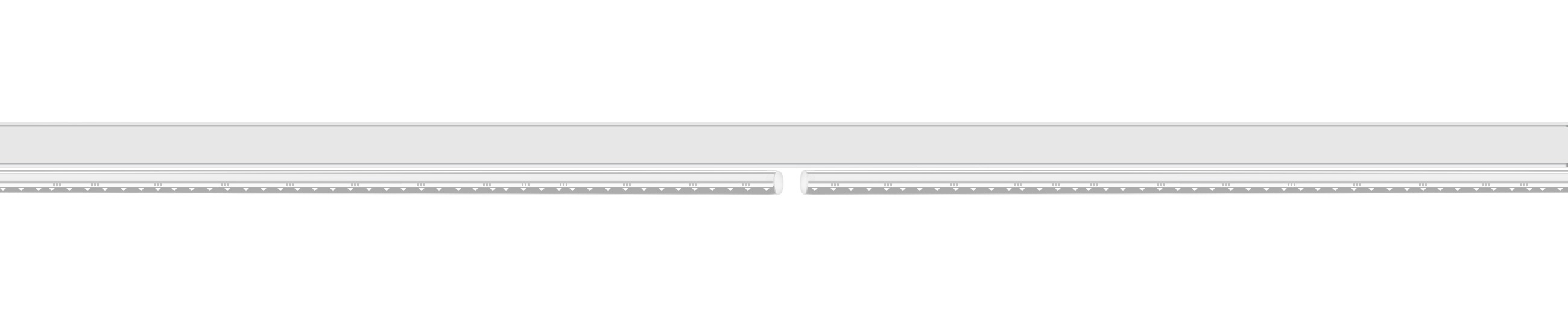

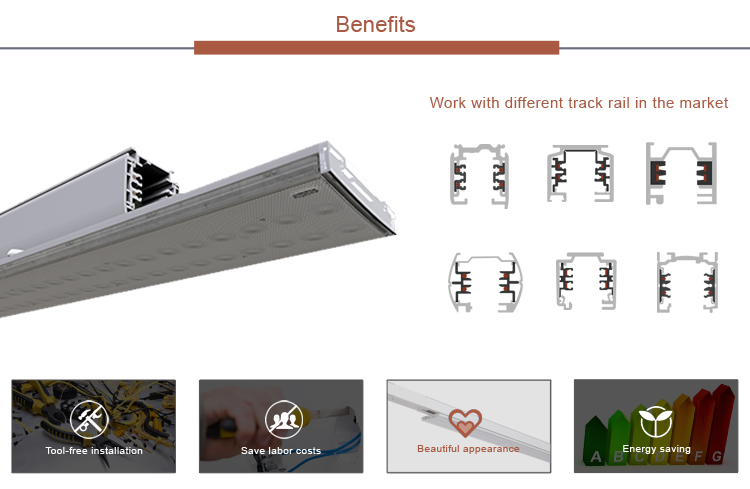

Coreshine T-linetrack linear is a custom design with perfectly matched to Europe 4 wire and North America 3 wires track rail.This new track linear is continuous seamless lighting with option in-between to install track spot lights, even as various lens options according to projects requirements. This new track linear is totally tool-less easy to install saves time, cost, and labor.
Track Linear

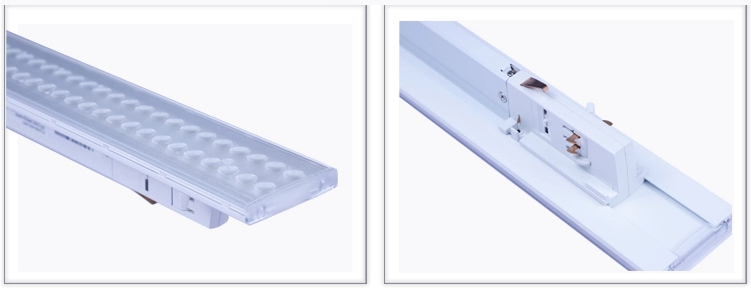

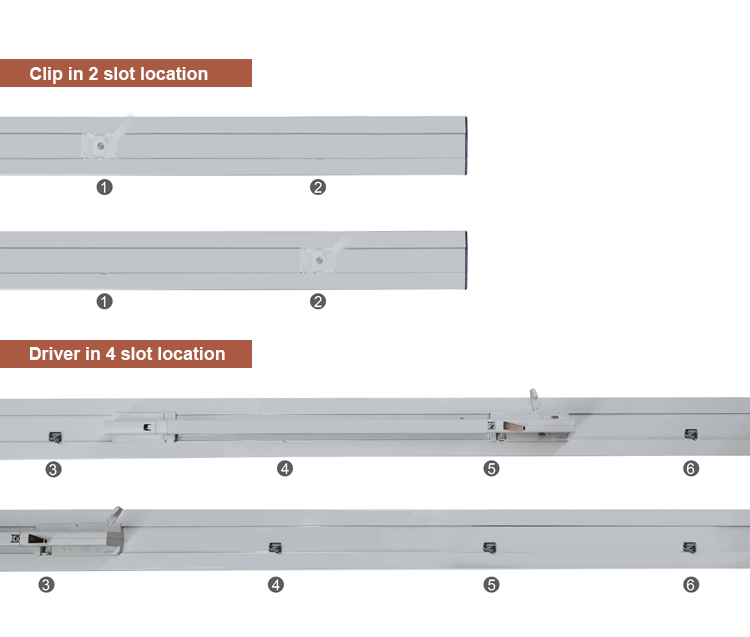

* Phase pre-selection via adaptor, track linear can be adjusted by moving right or left
* For Europe standard 4wires,The maximum current is 10A, allowing 60pcs of 1500mm 35w in one serial row 220VAC power supply
* For America standard 3wires,The maximum current is 10A, allowing 30pcs of 1500mm 35w in one serial row 100VAC power supply
* Flexible change of installation position
* Existing track rail
 |  |

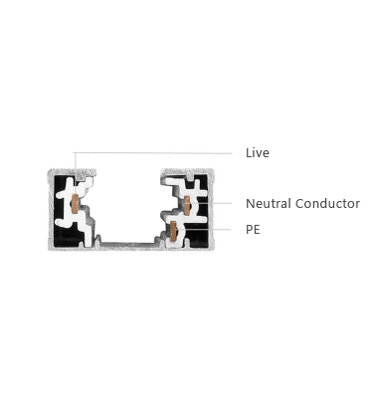

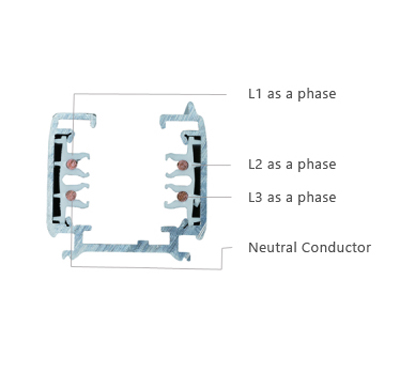

Track Rail ( 4 wires/3 phases )European Standard3 separated switchable circuits | Track Rail ( 3 wires / 1 phase ) - North America StandardFor North America Standard track spot light, there is only one circuit in the lamp. |
